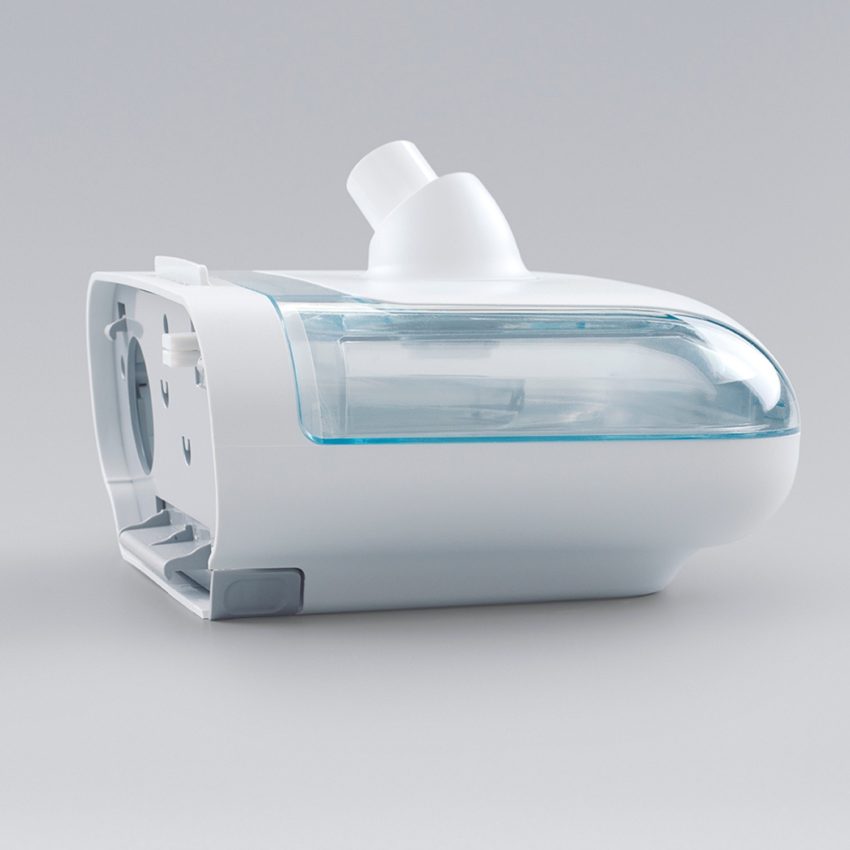

Replacement Heated Humidifier Water Chamber Tub for Philips Respironics DreamStation CPAP / BiPAP Machine
$199.99
Replacement Heated Humidifier Water Chamber Tub for Philips Respironics DreamStation CPAP / BiPAP Machine.
Qualifies for HSA & FSA
Safe & Secure Checkout
24/7 Customer Support
The Replacement Heated Humidifier Water Chamber Tub for Philips Respironics DreamStation CPAP / BiPAP Machine connects directly to DreamStation CPAP or BiPAP machines and save yourself the hassle of complex user devices. Dreamstation is a 325mL large water chamber heated humidifier used with the dry box technology. It will minimize or eliminate water damages that may occur in your humidification system. The humidifier works with all the Dreamstation CPAP and BiPAP machines and will easily trap your water within its walls. This is efficient as it prevents the water from traveling in the humidifier connection or through the machine. The humidifier is easy to set on a standard heating mode operation. This is great at providing constant heating levels throughout your night therapy. The motor delivers under 25.8 decibels with a working average pressure.
Compatible with
- DreamStation Pro
- DreamStation BiPAP (Set Pressure) Machine with Humidifier
Key Features
- Dry Box Technology
- Heated Tubing
- Standard Heating Mode
- Apart from the standard mode there is
- Adaptive Mode: Monitors the ambient humidity and auto adjusts heat levels
- Preheat Mode: Heats the humidifier for 30 minutes prior to starting your therapy
- Fixed Mode: Allows you enjoy a constant heat from the humidifier’s heated plate
- Large Water Chamber:is available at the center of this humidifier. It is a removable and easy to clean w
- Whisper Quiet Sound Levels: You won’t irritate your sleeping partner if you have this smart humidifier. Thanks to its ability to give out the whisper quiet sound levels. This machine is one of the quietest that you can get in the market today. It provides the most restful and highly comfortable good night sleep.
Note: The water chamber should be clean using warm water and also mild detergent once a week. Once it is washed, let it completely dry out before you put it back. Do not dry it under direct sunlight or heat.
In the box:
- (1) Humidifier
- (2) Water Chamber
Specifications
Dimensions – Humidifier Alone (Height Excludes Air Outlet Port): 5.75 in L x 7 in W x 3.25 in H (14.61 cm L x 17.78 cm W x 8.26 cm H)
Dimensions – Machine and OPTIONAL Humidifier (Height Excludes Air Outlet Port): 11.7 in L x 7.6 in W x 3.3 in H (29.7 cm L x 19.3 cm W x 8.4 cm H)
Weight – Humidifier Alone: 1.44 lbs
Weight – Machine and OPTIONAL Humidifier with Power Supply: 4.37 lbs (1.98 kg)
Weight – Water Chamber: 5.57 oz
Water Chamber Capacity: 325mL (11 oz)
Depth of the Air Outlet Port: 2.75 in (7cm)
Compatible CPAP Tube Diameter: 22mm Standard, 15mm Slim, 15H Heated Tube
Maximum Temperature – Heater Plate: 149 degree F (65 degree C)
Maximum Pressure Drop with Humidifier: 0.6 cm H2O at 60 LPM flow
Operating Temperature: 41 degree F to 95 degree F (5 degree C to 35 degree C)
Storage Temperature: -4 degree F to 140 degree F (-20 degree C to 60 degree C)
Relative Humidity (Operating & Storage): 15 to 95% (non-condensing)
Atmospheric Pressure: 0 – 7500 ft (0 – 2286 m) (101 to 77 kPA)
Maximum Recommended Pressure: 25 cm H2O
AC Power Consumption (with 80W Power Supply): 100 – 240 VAC, 50/60 Hz, 2.0 – 1.0 A
DC Power Consumption: 12 VDC, 6.67 A
Mode of Operation: Continuous
Sound Pressure Level (Machine and Humidifier): 27.9 dB(A) with an uncertainty of 2 db(A)
Sound Power Level (Machine and Humidifier): 35.9 dB(A) with an uncertainty of 2 db(A)
Limited Warranty: 2 Years
Languages: English or Spanish
‘Optional’ Heated Tube Specifications
Maximum Recommended Pressure: 25 cm H2O
Inner Diameter of the Heated Tube: 15mm (0.6 in)
Length of the Heated Tube: 6 ft (1.83 m)
Heated Tubing Temperature Range: 60 degree F to 86 degree F (16 degree C to 30 degree C)
Heated Tubing Temperature Cut-Off: Equal to or Greater than 106 degree F (Equal to or Greater than 41 degree C)
Heated Tubing Material Components: Flexible Plastic and Electrical Components
FAQ
- Why is the philips dreamstation heated humidifier ideal for apnea sleep therapy patients?
Heated humidification technology is an extra comfort feature which helps to eliminate any dryness and also irritation is often associated with sleep apnea therapy devices. It comes with a simple to use chamber tub that you can use on your heated humidifies to get a seamless operation.
Heated humidifiers can be used with several other CPAP models but you have to find out if your CPAP machine is compatible. - Can I use my sleep apnea therapy machine when I am suffering from a cold?
Yes. You can use your CPAP machine when you have a cold. CPAP machines will help in providing a quick relief from both cold and flu. It will eliminate chest congestions, severe coughing, and sore throat.
However, when suffering from cold or flu, it is recommended that you use a full face mask for your sleep apnea therapy. The full face mask is recommended for the people who breathe through their mouths such as when suffering from flu. - What happens if you notice that the water in your CPAP runs out?
The water in your CPAP machine shouldn’t run out before the therapy is finished or before you wake up. If it does, then it can mean only one thing, either your CPAP pressure is high or that the humidifier’s temperature is high.
You may want to check the two and adjust them accordingly. Lowering the heat settings will enable you to have slower evaporation and as such eliminate any chances of you running out of the water early.
