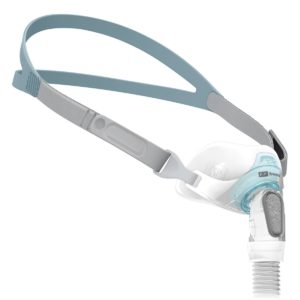

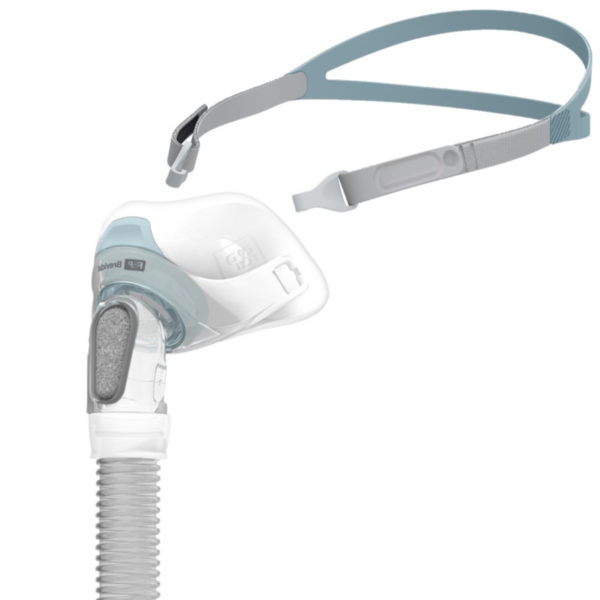

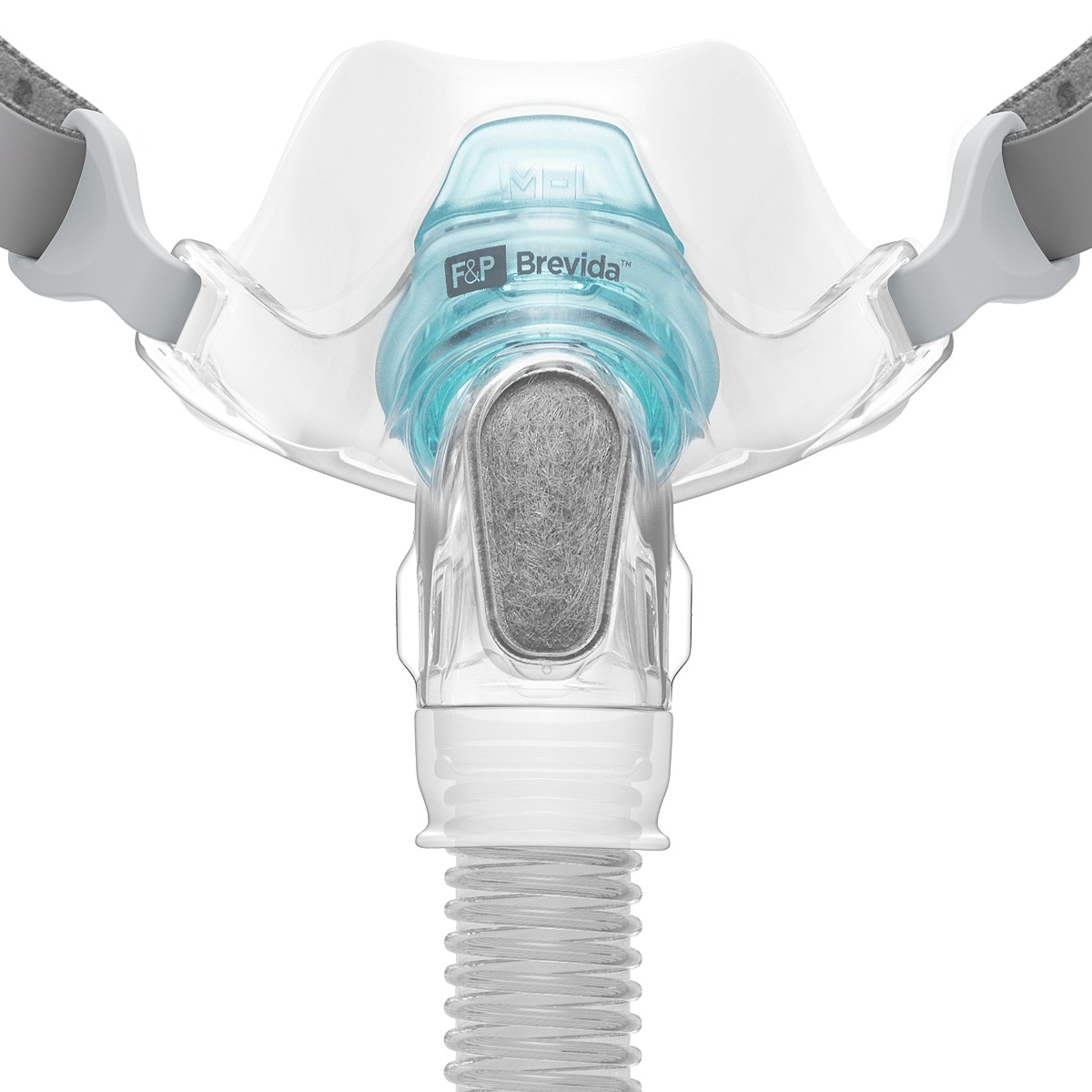

Fisher & Paykel BPA-Free Brevida™ Nasal Pillow CPAP / BiPAP Mask with Headgear FitPack (XS-S; M-L)
$89.00
Fisher & Paykel BPA-Free Brevida™ Nasal Pillow CPAP / BiPAP Mask with Headgear FitPack (XS-S & M-L)
“Designed for Confidence. Built for Comfort. ” – F&P
HSA & FSA Eligible
24/7 Customer Support
Secure Checkout
Fast & Free Shipping
The Fisher & Paykel BPA-Free Brevida™ Nasal Pillow CPAP / BiPAP Mask with Headgear FitPack (XS-S & M-L) features include are easy adjustable headgear and the new innovative AirPillow seal for a gentle, effective seal. The AirPillow is designed to be worn looser than other nasal pillows. As the CPAP air enters, the AirPillow inflates sealing in and around the bottom of the nose. Available in 2 sizes, (Extra Small-Small) and (Medium-Large). The AirPillow™ cushion extends from the tip of the nose to the cheek, resting just above the upper lip. Position the pillows inside the nostrils and allow the outer walls to stabilize the seal. BPA-Free CPAP Mask.
Features:
- Ultra-Light Low Profile Design with Minimal Facial Contact
- Self-Inflating AirPillow Seals with Unique Side Supports
- Flexible Short Tube & 360° Swivel Elbow
- Eco-Friendly Air Diffuser Reduces Exhaust Sound & Intensity
- VisiBlue Highlights for Easy Assembly & Fitting
- Two Sizes Available to Fit a Wide Range of Users
In the box:
- (1) Mask Frame
- (2) Nasal Pillows
- (1) Headgear
- (2) Clips
- (1) Elbow and Swivel
- (1) Short tube
| Nasal Type | Covers Nose, Inside Nose |
|---|
VIDEO
SPECIFICATIONS
Specifications:
Brevida Mask Cushion Materials:
- Frame: Polycarbonate
- Elbow: Polycarbonate
- Swivel: Polycarbonate
- Seal: Silicone/Polycarbonate
- Headgear: Lycra / Polyurethane Foam Laminate
- Headgear Clips: Acetal
- Diffuser: Polyester Fiber/Polycarbonate (PC)
- Tube: Polypropylene (PP)
- Cushion Size Offered: One Cushion in Selected Size
- Headgear Included: Yes
- Replaceable Cushions (Not Included): Yes
- Headgear Quick-Clips: Yes
- Operating Pressure Range: 4-25cm H2O
- Operating Temperature Range: 41 to 104 degree F (5 to 40 degree C)
- Sound Power Level with Diffuser: 25.4 dBA
- Sound Pressure Level with Diffuser: 17.5 dBA
- Sound Power Level without Diffuser: 30.6 dBA
- Sound Pressure Level without Diffuser: 22.6 dBA
- Latex Free
TIPS
Tips to Obtain the Optimal Fit with the Brevida™
- Once the mask has been removed from the packaging and all components are fit together, use your thumbs and index fingers to pull the wings of the cushion slightly apart from one another.
- With the mask opened widely, insert the pillows inside the nostrils and position until a secure fit is obtained.
- Allow the cushion material to enclose the nose to complete the seal around the nose.
- Using one hand, hold the frame and cushion closely to the face and pull the headgear over the head so both headgear straps land softly at the back of the head.
- Fit the headgear along the face ensuring the material is above the ears and below the eyes.
- Lift the hook and loop tabs on the other side of the headgear clips and begin pulling the straps through the clips to increase or decrease tension.
- Once the best fit is obtained, secure the hook and loop tabs to the headgear.
Tips to Assemble and Disassemble the Brevida™ Nasal Pillow Mask
- Assembly Tips
- Gently push the nasal pillow cushion into the opening in the middle of the mask frame.
- Thread the headgear straps through the headgear clips and close the the hook and loop tab to the headgear for closure.
- Attach the headgear clips to the mask frame.
- Snap the diffuser cap onto the top of the mask elbow.
- Connect the blue rim of the swivel to the short tube, then connect the short tube to the mask elbow.
- Pair one end of the CPAP hose to the swivel and the other end to the CPAP machine.
- Disassembly Tips
The mask may be taken apart for a few reasons. Follow these guidelines for removing parts from the Brevida™ mask.
- If replacing a singular part, remove the piece being replaced and add the new part in its place.
- If dismantling for cleaning, remove the headgear clips from the headgear. Then, remove the nasal pillow cushion from the mask frame. Remove the diffuser cap and the short tube from the elbow before finally removing the swivel from the short tube.
Longevity and Functionality Tips for Optimal Therapy Results
To increase the effectiveness of therapy, check the mask components for wear and tear before each use. If the cushion or tube become torn, seek replacements before using the device. Air must always be able to flow inside and outside of the mask. Ensure the diffuser is free from blockage and maintain a daily cleaning schedule to ensure all other components remain in good working order.
Tips for Cleaning the Nasal Pillow Cushion & All Mask Components
- Cushion, Short Tube, and Swivel: Wash daily in warm water with mild soap. Do not exceed 10 minutes. Rinse with fresh water until all soap residue is gone and allow the components to air dry away from direct sunlight before wearing.
- Headgear and Diffuser Cap: Wash at least once per week in warm water with mild soap. Do not exceed 10 minutes. Rinse with fresh water until all soap residue is gone and allow the components to air dry away from direct sunlight before wearing.
