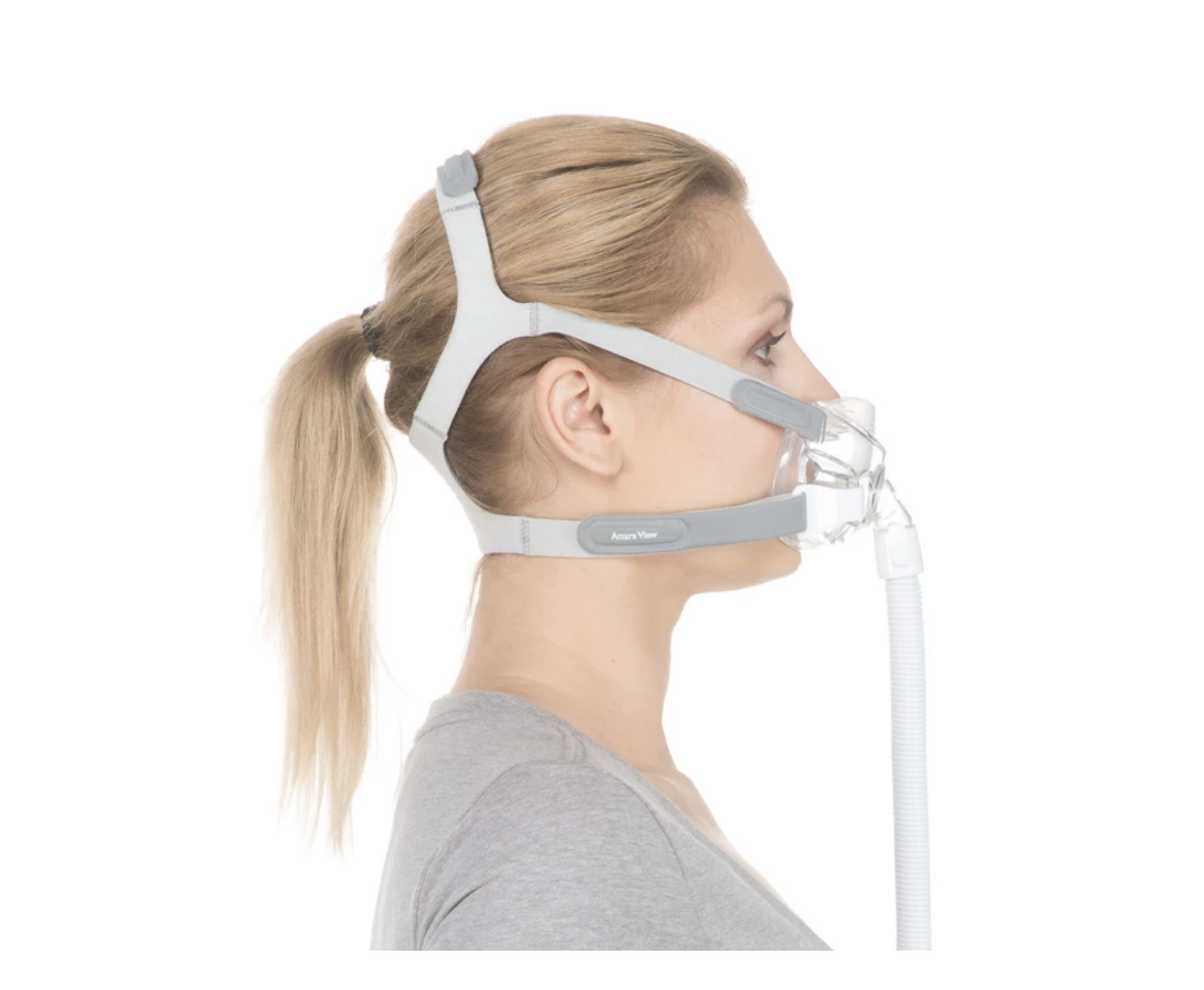

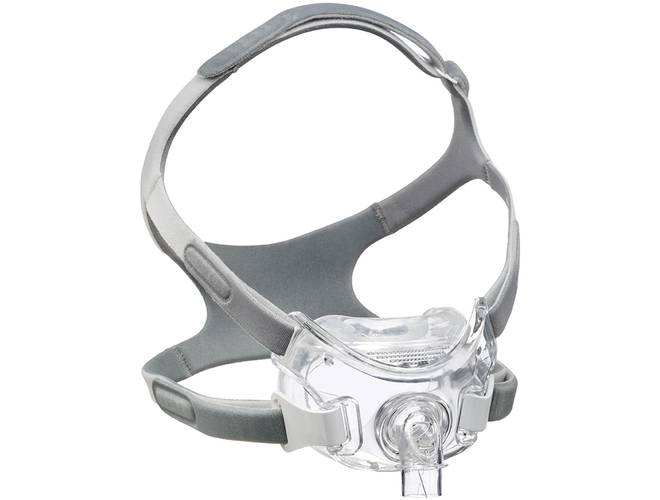

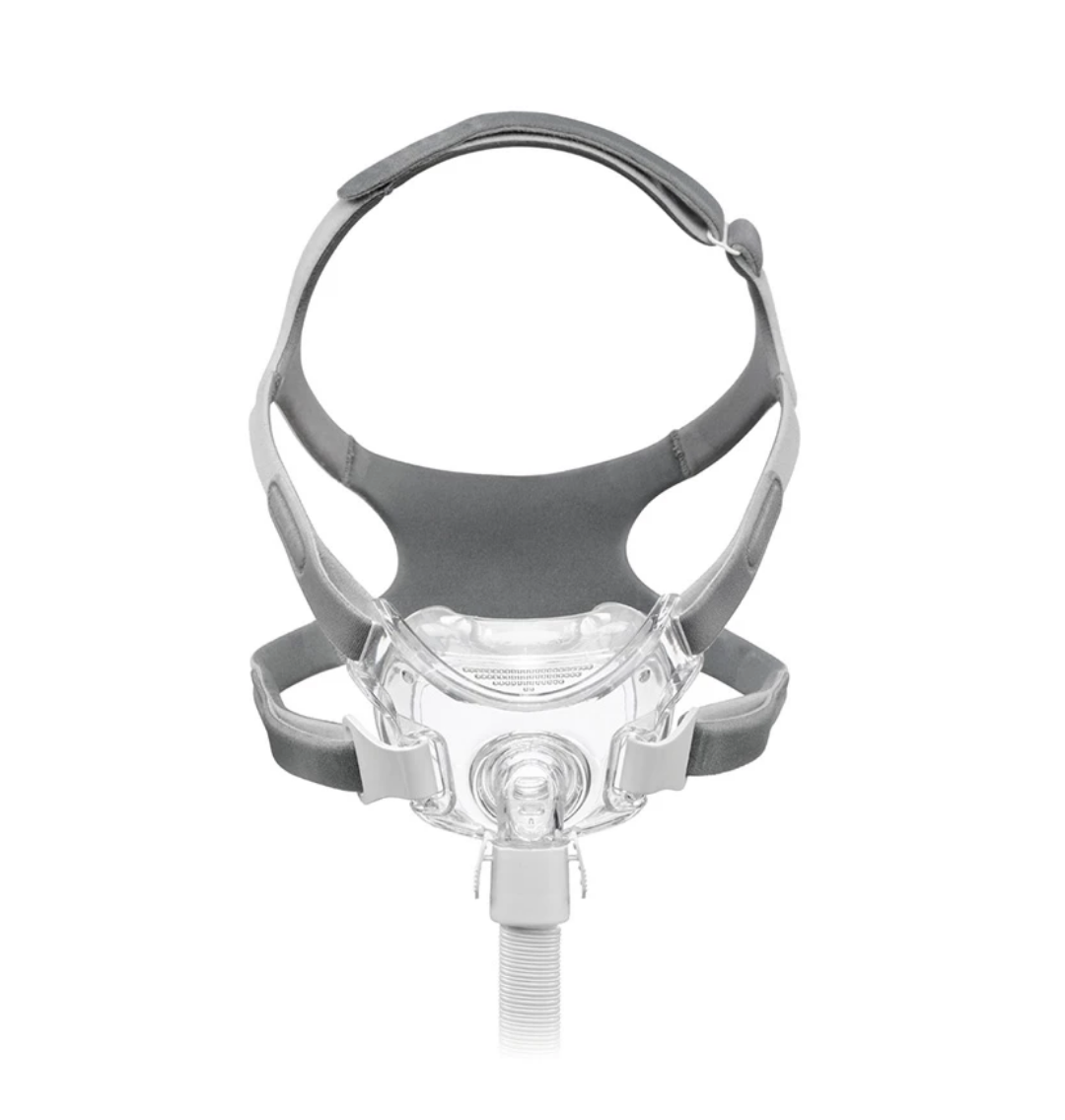

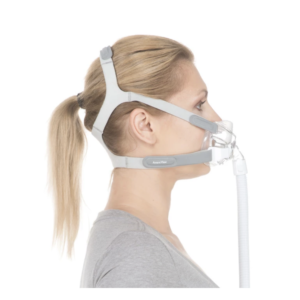

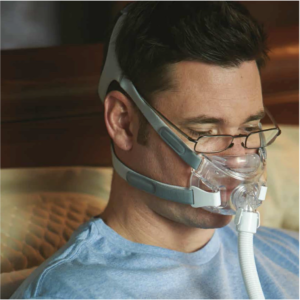

The Bundle Deal: Philips Respironics Amara View Full Face CPAP / BiPAP Mask (FitPack) is a new design technology that offers the widest range of clear cut visibility leaving no marks on the bridge of the nose. Now, with convenient magnetic clips for enhanced ease of use. The seal is provided with the headgear design which extends right from the front area of the face mask frame up to the crown of your head. If you suffer from claustrophobia Amara View is the right mask for you. The tube extends from the front of the mask frame and connects directly to the cuff of the CPAP hose. Attach the built-in elbow to the mask frame and secure the swivel to the cuff of the CPAP hose. The flexible tubing moves freely with the motion of the user, giving the user more mobility of 360 degree motion. This causes less of a pull on the CPAP hose and increases the user’s chance of maintaining a strong seal throughout the night. Waking up in the middle of the night can be difficult. With quick release headgear clips, simply rotate and lift the clips to swiftly remove the mask from your face. The headgear is designed to maintain its shape while the clips are detached, so re-applying the headgear might be accomplished with ease.
Key Features
- Open Vision Design
- Quick Release Magnetic Headgear Clips
- Under the Nasal- Bridge Cushion
- Lightweight Materials
- Best Pressure Nasal Opening
- Universal Size Mask Frame
- Adjustable Headgear with Crown Strap
- Short Tube with Elbow and Swivel

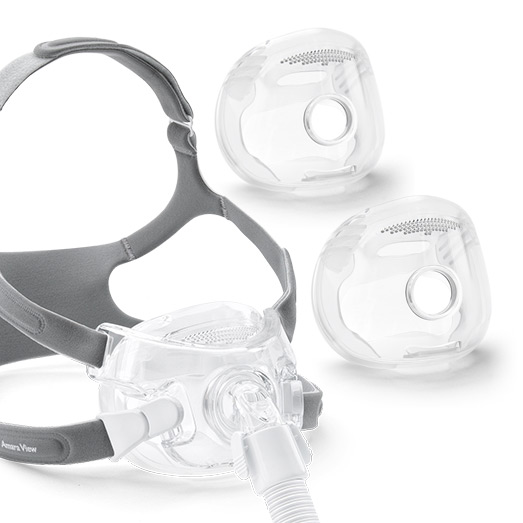

In the box:
- (1) Headgear
- (3) Cushion
- (2) Magnetic Clips
- (1) Elbow
- (1) Short Tube
- (1) Frame
| Cushion Type | Silicone |
|---|---|
| Full Face Type | Claustrophobic, Covering Mouth & Sits Under The Nose, Tube On Top Of The Head |
Specifications
Mask Frame: Polycarbonate
Elbow: Polycarbonate
Swivel: Polycarbonate
Full Face Cushion: Liquid Silicone Rubber
Tubing: Thermoplastic Polyester Elastomer
Headgear Clips: Includes Magnets.
Quick Release Tabs: Polyoxymethylene
Headgear: Polyurethane, Nylon – Lycra
Weight – Amara View Full Face CPAP Mask with Headgear (Including All Parts): 4.93 ounces
Weight – Mask Frame: 0.9 ounces
Weight – Short Tube: 1.41 ounces
Weight – Headgear (Standard Size): 1 ounce
Weight – Headgear Clips: 0.19 ounces
Measurements – Short Tube: 14.5 inches excluding connections
Measurements – Headgear (Standard Size):
- Lower Strap: 7.5 in L x 0.75 in W excluding quick-release tabs
- Upper Strap: 6.25 in L x 0.5 in W excluding quick-release tabs
- Crown Strap: 8 in L x 0.75 in W excluding quick-release tabs
- Center Band: 2 in L x 5 in W
Measurements – Headgear Clips: 1.5 in L x 1 in W x 0.5 in H
Storage Temperature: -4 degrees F to 140 degree F (-20 degree C to 60 degrees C)
Storage Relative Humidity: 15% to 95%, non-condensing
How To?
Click on the links below to watch the videos to your questions.
1.How to choose the correct size for Philips Respironics Amara View Full Face CPAP Mask?
2. How to fit or adjust Amara View Full Face CPAP Mask?
3. How to fix an air leak for Amara View Full Face CPAP Mask?
Fitting Guide
Philips Respironics Amara View Printable Fitting Template
Fitting and Adjusting Your Amara View CPAP Mask
- Loosen headgear to a large setting, then disconnect the magnetic headgear clips by gripping and twisting them outward to disconnect from the magnetic headgear clip receiver.
- The mask will fit against the face straight on, under the nose and over the mouth. Place the nose over, not into, the nostril opening on top of the cushion
- Holding the cushion in place against the face, pull the headgear over the head. Push the mask cushion up into position so that the large opening sits over the mouth and the top of the cushion fits under the nose.
- Connect the magnetic headgear clip to the magnetic headgear clip receiver.
- The crown strap is very important in achieving a proper seal. Pull the crown strap tab over the top of the head to reduce leaks around the nose.
- Pull back on the tabs to adjust the top and bottom side straps. The headgear should fit loosely and comfortably. Be careful not to over tighten, which is a common mistake.
- Connect the flexible tubing (included with the CPAP or bi-level device) to the Amara View quick release tube
FAQ
- How do I adjust my Amara View full face CPAP mask with headgear?
The mask comes with an adjustable headgear. The headgear have five adjustment points and additional release clips. Apart from that is a crow strap that you can easily adjust as it crosses right on the top of your head. - How should I remove my Amara View mask when I wake up at night?
Use the magnetic headgear clips. They are designed to detach and also to reattach the headgear with a single touch. You should just apply some little pressure to pop them right off your head and back. Magnetic clips have been used by the best full face mask for long. - Can the Amara View work with all cushion sizes?
Even though it comes with the minimalist design, the Amara View mask has a universal frame. This means that it will easily fit with all cushion sizes. From small, medium, to large cushion sizes, the model will work easily and snap in fast.
3 reviews for Philips Respironics Amara View Full Face CPAP / BiPAP Mask (FitPack)
Add a review
Other Parts Sale
Replacement Short Tube Hose (with Swivel) for Philips Respironics Amara View Full Face CPAP Mask
Philips Respironics
Replacement Frame for Philips Respironics Amara View Full Face CPAP Mask
Masks Without Headgear
Philips Respironics Amara View Full Face CPAP Mask Assembly Kit
You may also like…
Full Face Masks

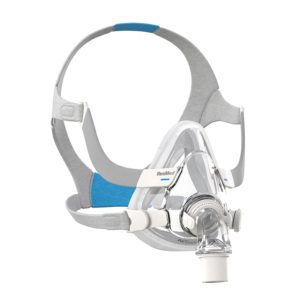

ResMed AirTouch™ F20 Full Face CPAP / BiPAP Mask with Headgear
Full Face Masks

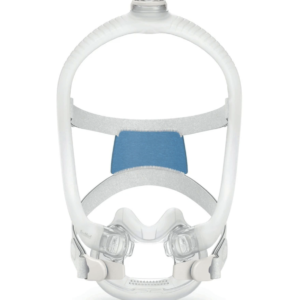

ResMed AirFit F30i Full Face CPAP / BiPAP Mask with Headgear
Fisher & Paykel
Fisher and Paykel Vitera Full Face CPAP / BiPAP Mask with Headgear FitPack (S, M, L)
Full Face Masks

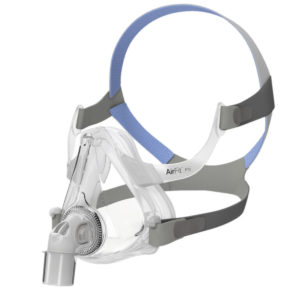

ResMed AirFit™ F10 Full Face CPAP / BiPAP Mask With Headgear
Full Face Masks

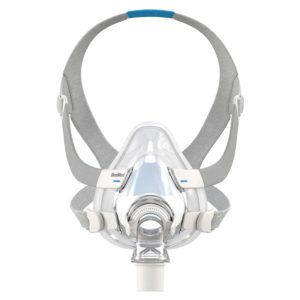

ResMed AirFit™ F20 Full Face CPAP / BiPAP Mask with Headgear
Full Face Masks

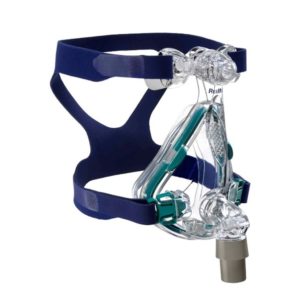

ResMed Mirage Quattro™ Full Face CPAP /BiPAP Mask with Headgear
